Vibratory feeder

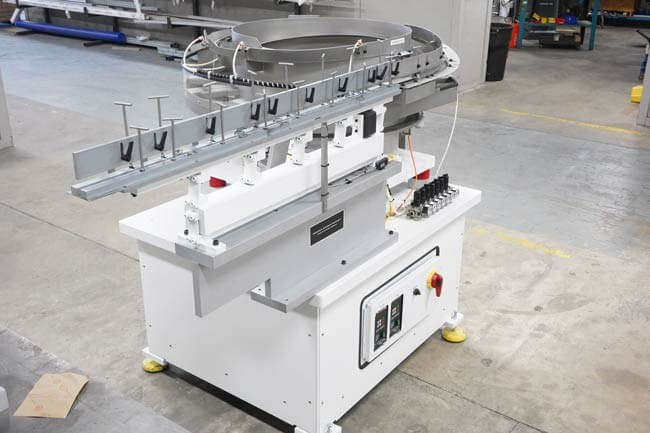

The Electromagnetic Vibratory Feeder consists of a tray made of mild steel and a body housing the electromagnet. The tray which is connected to the armature of the magnet vibrates as the magnet gets energised. The vibration sets the material in motion. Controlling of vibration gives the controlled flow of the material. The body housing the electromagnet is made in totally enclosed design to prevent dusting.

Electro-Magnetic Vibrating Feeders Ideal for bulk material flow in feeding mixing and packaging operations. Vibrating Feeders offer unmatched flexibility and reliability, making them ideally suited for a number of applications and materials. They are typically used in feeding, mixing blending. batching, grinding, packaging, flaking, freezing and drying applications. Whether the material is hot or coarse, dry or damp, light or heavy, these versatile units handle it with ease and efficiency.

Working Principle

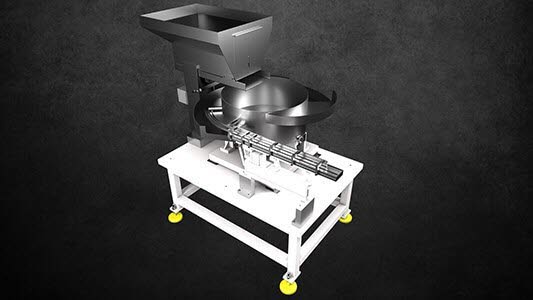

Like all vibrating feeders, an electromagnetic vibrating feeder moves product by making the feeder tray vibrate..

The product sits in the tray. When the tray vibrates, the product moves in a series of small hops. This series of hops combine to create the constant motion of the product.

The direction of movement is determined by the angle of the springs. The product will move up from the tray, perpendicular to the angle of the springs.

Electromagnetic vibratory feeders can be supplied from few grams to 100 tons per hour capacity or more. They can also handle slightly wet material. Electromagnetic vibratory feeders can also be used for screening by fixing a screen over the tray.

These screens have been very successful for screening free flowing material, as the use of moving parts, eccentrics, etc. have been completely eliminated in this application.The vibratory feeders tabled below, operate at 230 Volts A.C. single phase system. The bigger size feeders beyond 100 T.P.H operate at 440 Volts A.C. Two phase.

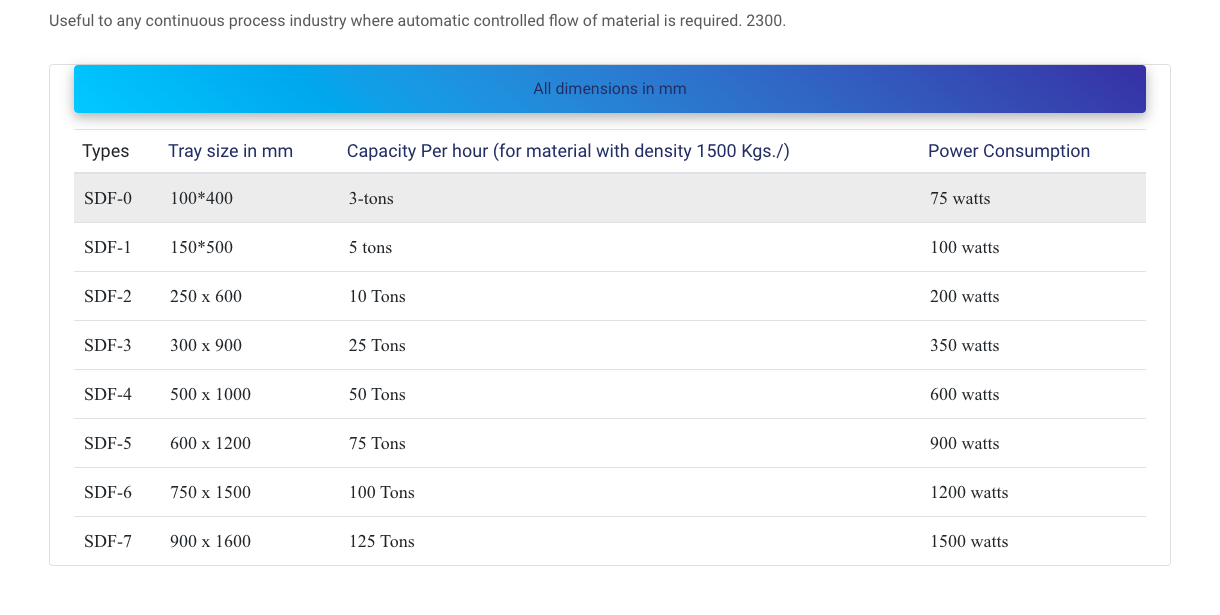

The vibratory feeder can be supplied either in floor mounted or suspension mounted design as required.Electromagnetic vibratory feeder is easy to install and operate. It hardly needs any maintenance because of absence of moving parts.

The Hammer Mill Plant Includes

Hammer Mill with External Control Feed
High efficiency bag filter with fully automatic pulse jet cleaning for dust free operation
Rotary Airlock used as an air seal and discharge material from bag filter.
Fan to provide air flow through the mill and the collector for product conveying
Control Panel for sequential starting and stopping of the milling plant

Model	A	B	K	M	D	E	F	C	ØH	Weight of Drive (Kgs)	Approx Power Consumption (Walts)	Approx Current Input (Amps)	Max Tray Size (mm)		Feed Rate (TPH)
													Width	Length
SFF-1	75	225	165	57	115	25	25	75	6	5	15	0.20	300	50	0.60
SFF-2	125	275	143	80	153	15	45	95	9	15	30	0.75	600	200	10.00
SFF-3	200	370	225	150	220	25	115	80	M-8	32	100	2.25	1000	300	7.50
SFF-4	265	390	190	195	270	30	127	100	M-12	64	180	4.00	1500	300	25.00

Model Type	Rot Dia in mm	Chamber Width in mm	Machine RPM	RecoH Mended Motor rpm	Over Dim. In Meter length/width/height	Capacity Kg/hr.upto.
	250	150	4500-6000	2880	460/350/530	150
HM-MS0	300	200	4000-4500	2880	550/400/650	300
HM-MS1	450	220	3000-3500	2880	800/600/850	750
HM-MS2	450	300	2500-3000	2880	800/700/850	1200
HM-MS3	600	360	2000-2200	1440	900/800/1000	4500
HM-MS4	750	450	1800-2000	1440	1100/900/1350	7500
HM-MS5	900	550	1400-1600	1440	1300/1000/1650	10000
HM-MS6	1050	650	1200-1400	1440	1500/1200/1200	15000
