Operating Pricniple

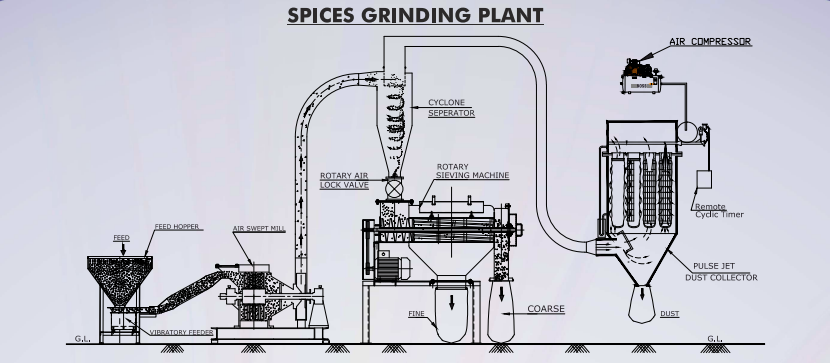

Spices Grinding Plant is economical unit specially designed for all types of spices for time saving operation. The Feed hopper is suitable to store all the spices. Below the feed hopper Vibratory Feeder is fitted. The Vibratory feeder is regulates its speed by speed controller to regulate feed of all the spices before entering into Spice Grinding Mill. The Spice grinding mill is technically designed to grind all the spices in one operation only.The grinding chamber is fitted with serrated fine liners and main shaft assembly is fitted with bar type Hammer which is fixed, with carbide tip for long life of hammer. The inbuilt Air Blower is specially designed to suck all the ground spices without getting high temperature.

The mixture of air and ground spices is delivering to cyclone separator through the air tight pipeline. The cyclone separator is efficiently separate air and ground spices. The ground spices are getting collected through Rotary Air Lock valve at the bottom with dust free operation. The dirty air is separated from top of the cyclone separator and passes though the pipe into the Pulse Jet Dust Collector. The Pulse Jet Dust Collector is fitted with non woven oil repellent and moisture repellent air filter which is separate the dust and clean air. The clean air is passes away into the atmosphere from the top of the Pulse jet dust collector.



Standard Supply

Spices Grinding Plant is complete with Feed Hopper along with Vibratory Feeder, Spice Grinding Mill with inbuilt air blower assembly, Mounting frame for Mill and Electric Motor, Set of Slide rail for Motor, Set of 'V' belt Set of Anti Vibration mounting pads, Set of safety guard for drive accessories, Set of pipe line, Cyclone separator with mounting stand, Set of Rotary Air lock valve, Set of PVC Pipe line for Pulse jet dust collector and Set of Pulse Jet dust collector assembly.

Necessary But Optional Supply(At Extra Cost)

  • 1. Electric Motor for Mill Air Compressor
  • 2. Electrical Panel Box with starter DOL/ Star Delta & ampere meter for load indicator.
  • 3. Air Compressor

Model No. Rotor Dia
(in mm)
Chamber Width
(in mm)
Recommended Motor
HP/RPM
Over Dim. In Meter
L*W*H
Capacity
Kg/Hr.
ASM-MS05 250 130 5*2880 3.0*2.0*3.0 25-30
ASM-MS10 300 200 10*2880 4.0*3.0*4.0 50-60
ASM-MS20 450 220 20*2880 5.0*4.0*4.0 100-125
ASM-MS40 600 360 40*1440 7.5*5.0*5.0 200-250
ASM-MS60 750 450 60*1440 10.0*7.5*5.0 300-400
ASM-MS75 900 550 75*1440 12.5*10.0*6.0 500-600
ASM-MS100 1050 650 100*1440 15.0*12.5*6.0 700-800
ASM-MS125 1200 750 125*1440 18.0*15.0*6.0 900-1000
ASM-MS150 1350 850 150*1440 20.0*18.0*8.0 1100-1200
ASM-MS200 1500 900 200*1440 25.0*20.0*8.0 1400-1500
Note:
  • Models available in STAINLESS STEEL and GMP also.
  • The capacity stated above is approximate only and depends on various physical properties of material to be ground
