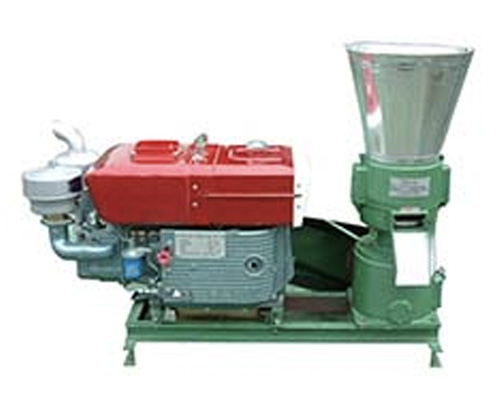

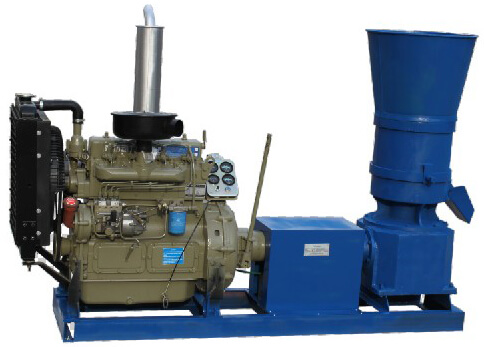

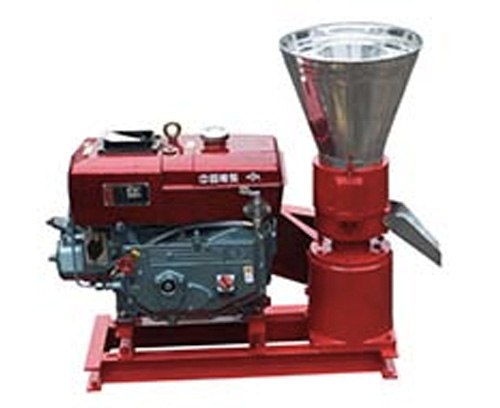

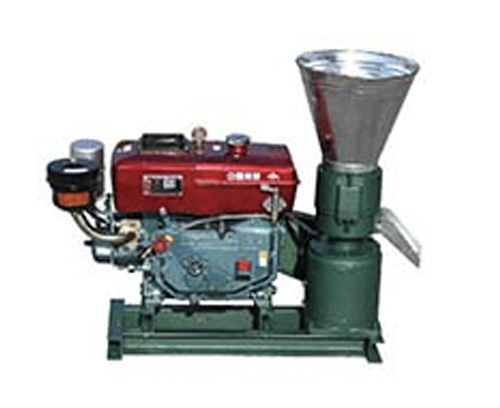

With the fast development of the animal feed pellets industry and the biomass fuel pellets industry, the pellet machine is more and more popular. As a professional manufacturer of pellet machine, we can supply you durable pellet mills with reasonable price and good performance. No matter you are interested in making wood pellets or feed pellets, our small industrial use pellet machine can realize your pelletizing requirement. AZSP-400D Diesel Flat Die Pellet Machine is one of them.

Working Principle

feedstock is mixed and before going to the pellet mill it should go through a sieve (or called sifter or screener). This removes everything such as metal (ferrous and non-ferrous), stones, string, paper, wood blocks, chips, material lumps and gives a dressed feedstock into the bin above the pellet mill. A pellet mill is not designed to pellet these materials, let alone the combustion of them.

The pelletizing process starts with a surge bin (which actually happen to be a buffer stabilizing the work of pellet mill) in which the mixture of raw material is stored. From there, the feedstock will flow into the pellet mill. After being pelletized, hot extruded biomass (pellets) will be conveyed into a cooler where it is held for three to six minutes while being cooled and dried by counterflow of air. The air is drawn through the mass of pellets and passed into a dust collecting device, such as a cyclone collector. The dust from the outlet of the collector can be designed to return to the pellet mill be compacted again into pellets.

The Pellet Mill Plant Includes

  • Simple operation, labor saving and low energy consumption with relatively high output, it is most suitable for small industrial pellet production.
  • Low noise, high endurance, good performance with low price, and easy to maintenance, it is advisable for large farms to choose and the families who want to make money by making pellets locally.
  • Without extra cabling, it is safe to operate and it causes no danger to children.
  • Powered by the diesel engine, without the restriction of electricity; and along with the small size and mobility, you can transport it easily to the place where your materials are.
  • Multi-functional. This advantages of AZSP-400D flat die pellet mill especially benefits large farms who can use this machine to make not only feed pellets for chickens, pigs, cattle, ducks, fishes, etc; biomass or wood pellets for heating, but also can make compound fertilizer pellets from animal wastes and agro-residues.
Model Type Power Capacity
(kg/lbs)/hr wood pellets
Capacity
(kg/lbs)/hr feed pellets
Weight(kg/lbs) Packing Size
(mm/inch)
ZLSP120B 2.2/3kw 40-80 60-100 80/100 750*320*680
90-180 132-220 175/220 30*13*27
ZLSP150B 4kw 50-90 90-120 95/110 800*450*700
110-200 200-265 210/250 31*18*28
ZLSP200B 7.5kw 80-120 200-300 200/230 1050*480*930
180-265 440-660 440/510 41*19*37
ZLSP230B 11k 120-200 300-400 290/320 1180*540*1000
245-440 660-880 640/105 46*21*39
ZLSP260B 15kw 160-250 400-600 320/360 1240*540*950
350-550 880-1300 705/800 49*21*37
ZLSP300B 22kw 250-400 600-800 350/380 300*560*1100
550-880 1300-1760 770/840 51*20*43

  • Biomass
  • High specific gravity.
  • High calorific value with longer combustion time.
  • Easy storage and transportation.
  • Feed pelletizing
  • Fertilizer pelletizing
